205205-2
Manufacturer:
TE Connectivity
Mfr.Part #:
205205-2
Datasheet:
Description:

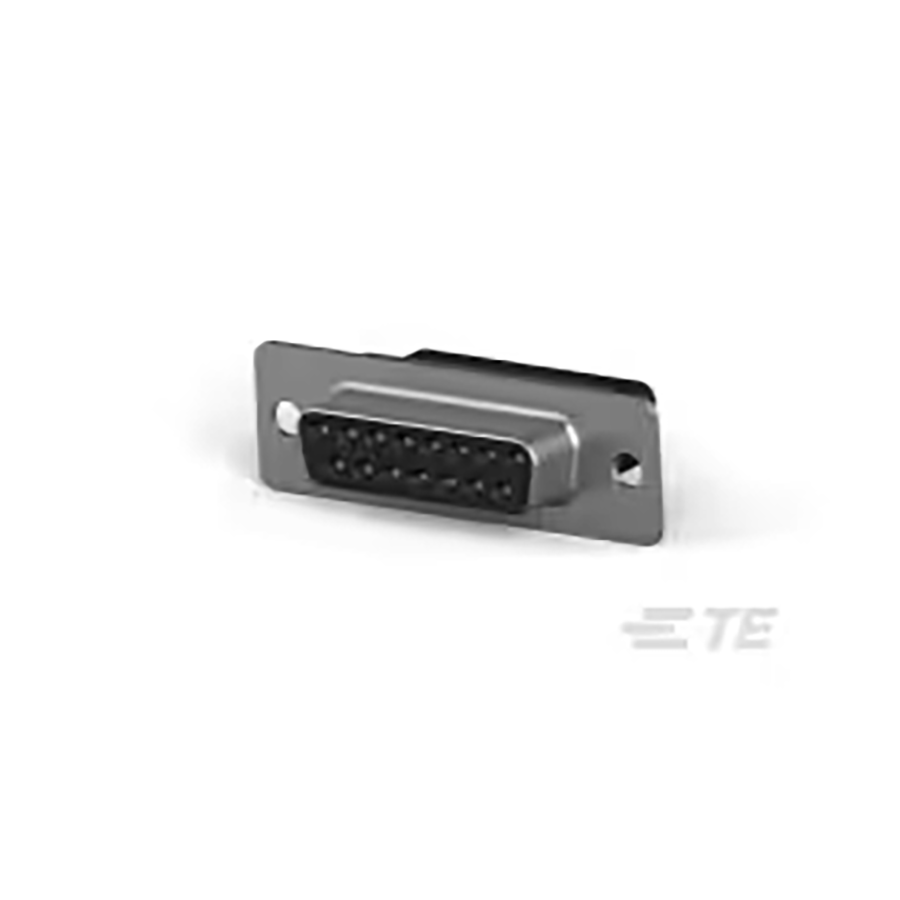

D-Sub Connectors Snap In Receptacle for Female Contacts Number of Positions:15 Solder Receptacle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Length | 39.14 mm |
| Width | 10.92 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 15 |
| Height | 17.14 mm |
| Material | Metal |
| Packaging | Bulk |
| Depth | 12.55 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Dielectric Material | Nylon |
| Type | Receptacle for Female Contacts |
| Number of Terminals | 15 |
| Max Current Rating | 3.7 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Shielding | Shielded |
| Number of Contacts | 15 |
| ELV | Compliant |
| Body Material | Metal |
| Connector Type | Receptacle |
| Contact Type | Signal |
| Number of Positions | 15 |
| Number of Rows | 2 |
| Housing Material | Steel |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Contact Resistance | 15 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Plating | Tin |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Mating Connector Lock | With |
Stock: 48
Distributors
pcbx
pcbxUnit Price$1.44518
Ext.Price$1.44518
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.44518 | $1.44518 |
| 10 | $1.20758 | $12.07580 |
| 25 | $1.10998 | $27.74950 |
| 50 | $1.02027 | $51.01350 |
| 100 | $0.93780 | $93.78000 |
| 300 | $0.88895 | $266.68500 |
| 500 | $0.84264 | $421.32000 |
